Initial condition for a PDE. More...

#include <FuncInitCond.h>

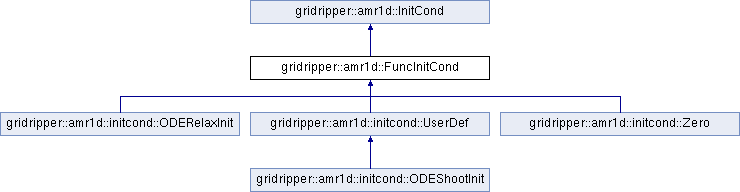

Inheritance diagram for gridripper::amr1d::FuncInitCond:

Public Member Functions
int	init (tvalarray< tvector< Grid * > > &grids, PDE pde, GReal_t dt, int r, int maxlevel, int bufzone, AMError amerr, double maxerr) throw (InitCond::Exception&)
	Creates and initializes base grid and initial subgrids.
virtual GReal_t	getTime () const
	Gets the time parameter at the initialization.
int	getInterpolatedLevel () const
	Gets the minimum refinement level where interpolation is used instead of the precise calculation of the initial state.
void	setInterpolatedLevel (int l)
	Initial values are interpolated on the specified refinement level and finer levels.
Protected Member Functions
	FuncInitCond (string &args, const Parameters *p) throw (InitCond::Exception&)
	Creates initial condition.
virtual void	init (PDE *pde, GReal_t x, FieldWrapper &phi)=0 throw (InitCond::Exception&)
	Initializes the grid at the specified point.
int	getMostRefinedGridMaxI () const
	Gets the most refined equivalent of the base grid size.
GReal_t	getMostRefinedGridDeltaX () const
	Gets the grid spacing of the most refined subgrids.
virtual bool	isNumericalConstraintSettingNeeded () const
	Tests whether the constraint condition is set numerically by the PDE.
void	setNumericalConstraintSettingNeeded (bool v)
	Enables or disables numerical constraint setting by the PDE.
virtual void	endInit ()
	Called at the end of init.

Detailed Description

Initial condition for a PDE.

Version:: 0.5, 05/08/2009

Since:: GridRipper 0.3, 04/23/2005

Author:: Peter Csizmadia

Constructor & Destructor Documentation

gridripper::amr1d::FuncInitCond::FuncInitCond	(	string &	args,
		const Parameters *	p
	)			throw (InitCond::Exception&) `[protected]`

Creates initial condition.

Parameters:

	args	the arguments
	p	the parameters

Member Function Documentation

virtual void gridripper::amr1d::FuncInitCond::endInit ( ) [inline, protected, virtual]

Called at the end of init.

This method can free temporarily allocated memory or perform other clean-up tasks. The default implementations is empty.

Reimplemented in gridripper::amr1d::initcond::ODERelaxInit, and gridripper::amr1d::initcond::ODEShootInit.

int gridripper::amr1d::FuncInitCond::getInterpolatedLevel ( ) const [inline]

Gets the minimum refinement level where interpolation is used instead of the precise calculation of the initial state.

Returns:: the minimum interpolated refinement level or zero if interpolation is not used

GReal_t gridripper::amr1d::FuncInitCond::getMostRefinedGridDeltaX ( ) const [inline, protected]

Gets the grid spacing of the most refined subgrids.

Returns:: the minimum possible grid spacing

int gridripper::amr1d::FuncInitCond::getMostRefinedGridMaxI ( ) const [inline, protected]

Gets the most refined equivalent of the base grid size.

Returns:: the size

virtual GReal_t gridripper::amr1d::FuncInitCond::getTime ( ) const [inline, virtual]

Gets the time parameter at the initialization.

The default implementation returns 0.

Returns:: the time

Implements gridripper::amr1d::InitCond.

Reimplemented in gridripper::amr1d::initcond::UserDef.

virtual void gridripper::amr1d::FuncInitCond::init	(	PDE *	pde,
		GReal_t	x,
		FieldWrapper &	phi
	)			throw (InitCond::Exception&) `[protected, pure virtual]`

Initializes the grid at the specified point.

Parameters:

	pde	the PDE
	x	the x coordinate
	phi	output array for the field values

Implemented in gridripper::amr1d::initcond::ODERelaxInit, gridripper::amr1d::initcond::ODEShootInit, gridripper::amr1d::initcond::UserDef, and gridripper::amr1d::initcond::Zero.

int gridripper::amr1d::FuncInitCond::init	(	tvalarray< tvector< Grid * > > &	grids,
		PDE *	pde,
		GReal_t	dt,
		int	r,
		int	maxlevel,
		int	bufzone,
		AMError *	amerr,
		double	maxerr
	)			throw (InitCond::Exception&) `[virtual]`

Creates and initializes base grid and initial subgrids.

Parameters:

	grids	array of all grids
	pde	the PDE
	dt	the time step
	r	refinement ratio
	maxlevel	maximum refinement level
	bufzone	buffer zone size
	amerr	error function
	maxerr	error tolerance

Returns:: the finest refinement level

Implements gridripper::amr1d::InitCond.

virtual bool gridripper::amr1d::FuncInitCond::isNumericalConstraintSettingNeeded ( ) const [inline, protected, virtual]

Tests whether the constraint condition is set numerically by the PDE.

Returns:: true in the default implementation

void gridripper::amr1d::FuncInitCond::setInterpolatedLevel ( int l )

Initial values are interpolated on the specified refinement level and finer levels.

Parameters:

l

the minimum refinement level where interpolation is used or zero to avoid interpolation

void gridripper::amr1d::FuncInitCond::setNumericalConstraintSettingNeeded ( bool v ) [inline, protected]

Enables or disables numerical constraint setting by the PDE.

Parameters:

v

true to set constraints numerically, false if they are initialized by this InitCond

The documentation for this class was generated from the following file:

/home/laszloa/SVN/GR/gridripper/include/gridripper/amr1d/FuncInitCond.h
